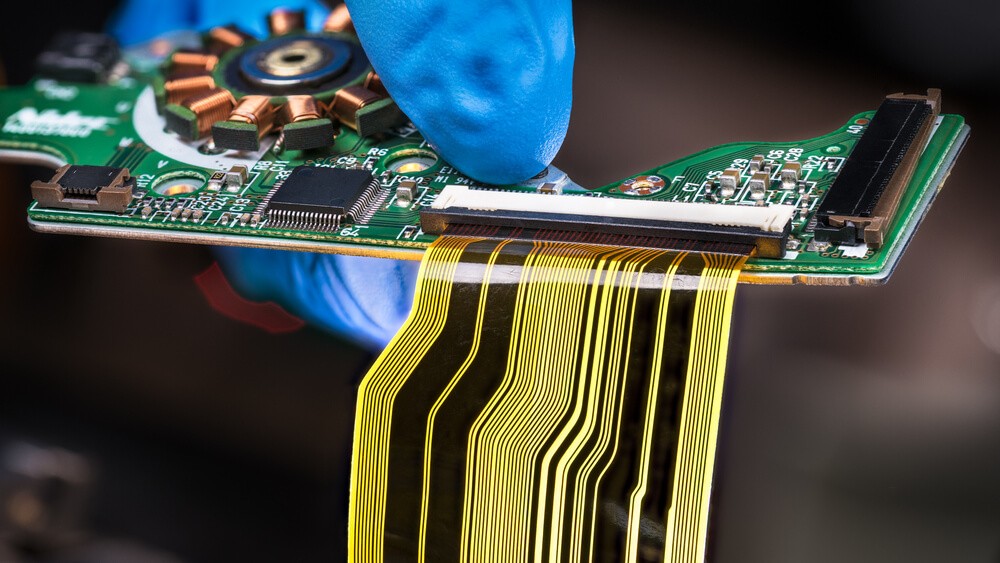

PCB Design Services – Single, Double, Multi-Layer, Rigid, Flex, Rigid-Flex

We have significant expertise in designing,

  • High-complexity PCB design
  • Critical & sensitive signal routing for Analog & Digital (Mixed Signal) circuits
  • Impedance controlled multi-layer PCBs
  • RF Layout designs
  • Load & probe card designs
  • Substrate design

Re-engineering services (fixing errors, cost optimization)

PCB reverse engineering service (Physical PCB to Gerber data)

We follow defined process to ensure quality outputs and on-time deliverable.

  • Mechanical set up
  • Floor plan analysis /Placement
  • Constraint settings
  • Power plane/copper shapes
  • Routing
  • DRC review/Checklist
  • Final outputs –
    • Gerber package
    • Assembly package
